Reference object 13 // Cuba >>

ELQUIm, Cuba

Construction of a Chlor-Alkali Electrolysis Complex

Project Data:
 Construction period

2015
 Client:

ThyssenKrupp Uhde Chlorine Engineers GmbH
 Concrete capacity:

ca. 1630 m³
 Steelwork capacity:

ca. 340 tons
 Scope of service:

Support structure planning LP 2-5

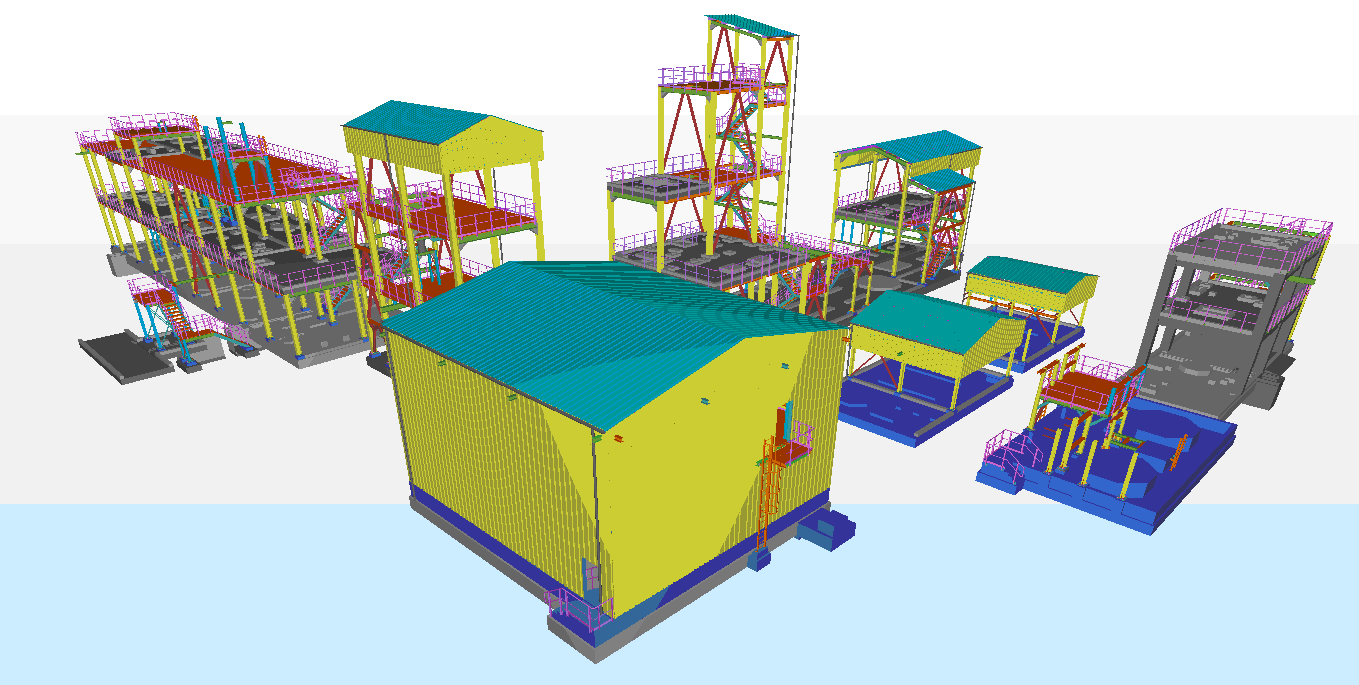

Object planning LP 2-5
Scope:

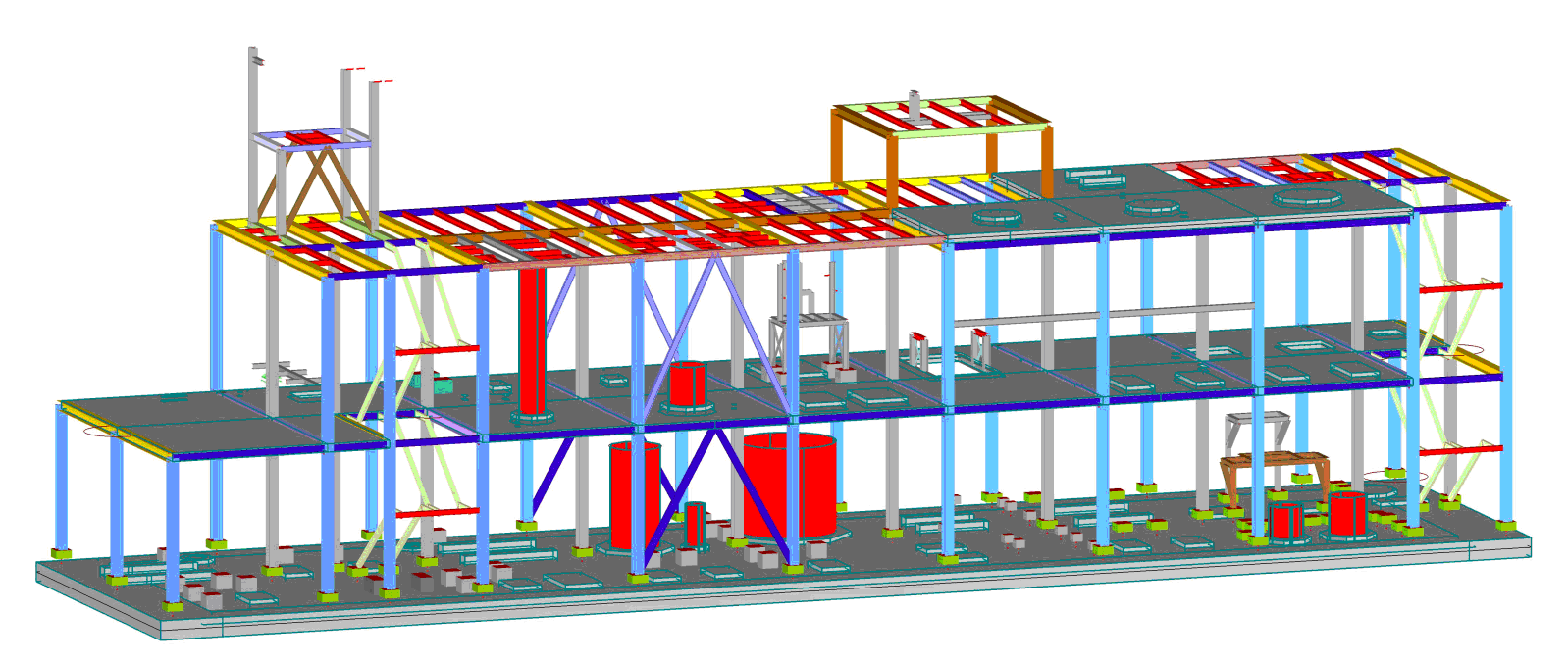

  • Structural analysis for process units and tank foundations

  • Formwork and reinforcement drawings

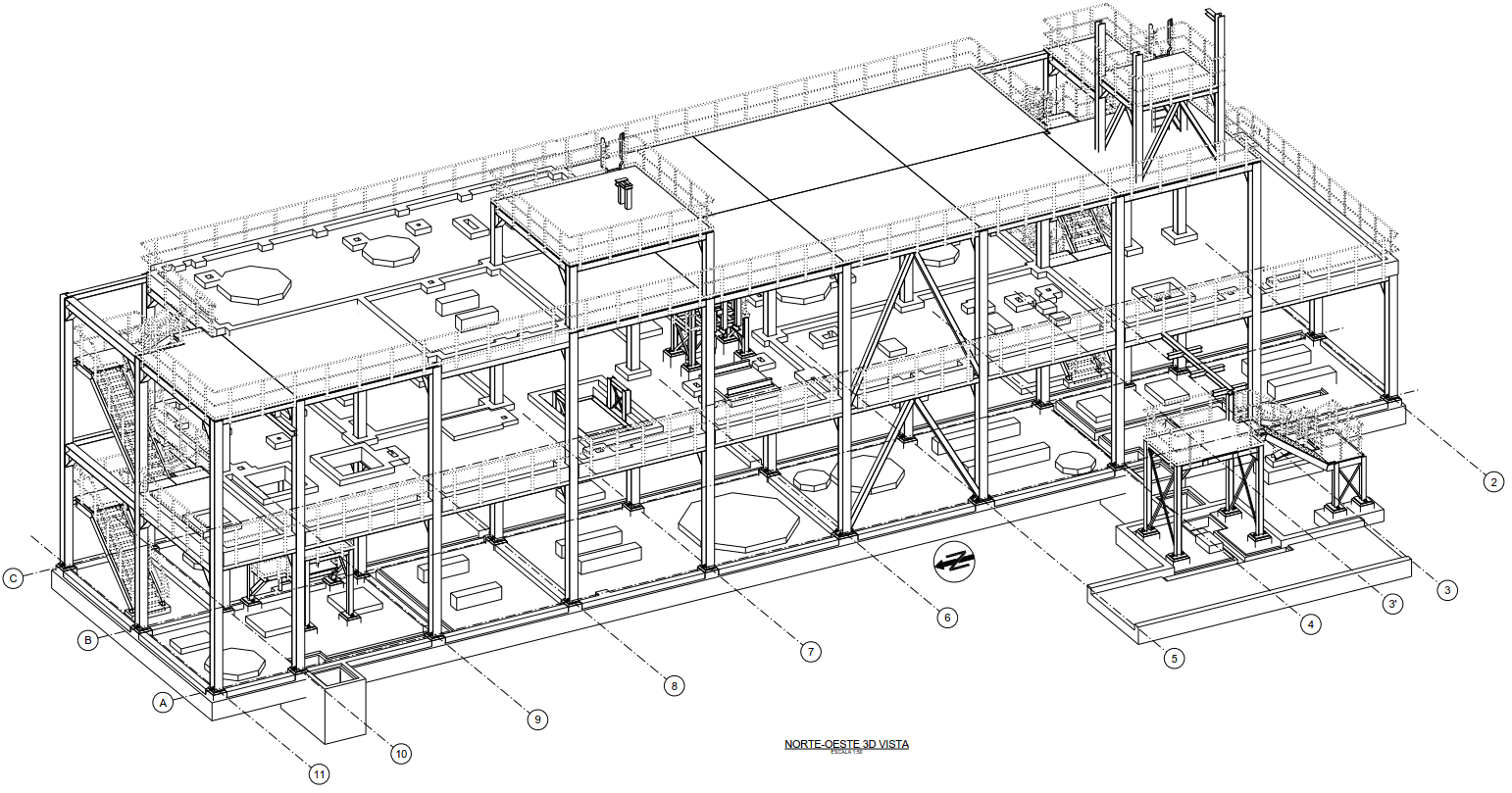

  • Steel contruction layout drawings

  • Design and dimensioning of the road and dewatering system of the complete plant (infrastructure)

Special features:
  • Structural analysis with conserderation of locally available materials
  • Bilingual documents in english and spanisch (structural analysis, formwork drawings, reinforcement drawings, and steel construction drawings)
  • The plant is currently under constrution
